Solution Overview

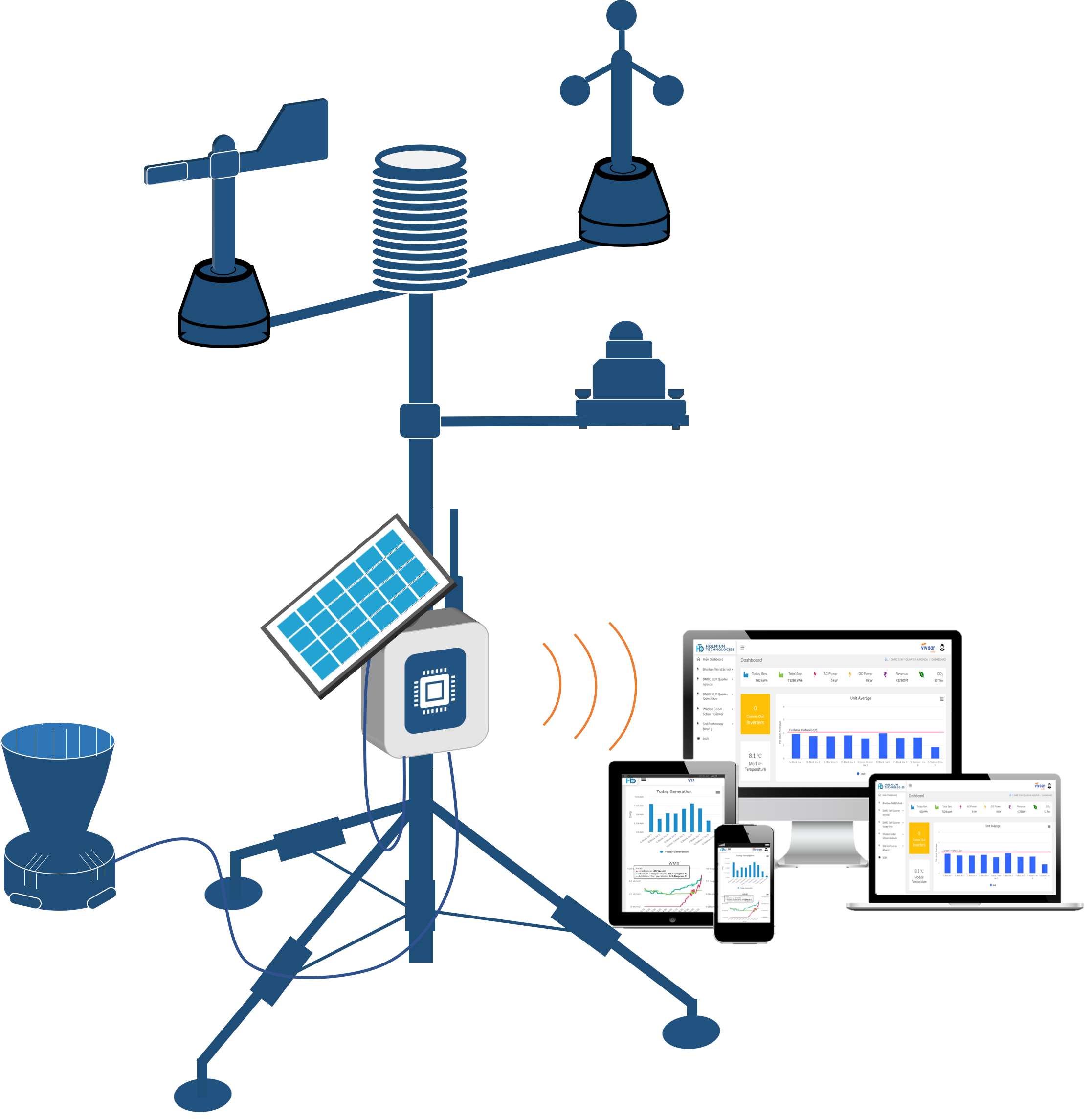

Automatic weather station is commonly used for the measurement of solar radiation, wind speed, wind direction, relative humidity, atmospheric temperature, atmospheric pressure, rainfall etc. The main components of the system are anemometer, pyranometer, wind vane, hygrometer, thermocouple and rain bucket along with datalogger to record parameters, LCD screen to display real time parameters, chassis and mounting structure. It finds applications in agriculture, forestry, highways, railways, solar or wind power generation, green house and breeding, meteorological science research.

Key Features

Extensive sensor options & outputs
Complete plug & play solution
Calculate PR, Expected vs. Actual Power Output, Module Efficiency etc
Get optimised business outcomes using condition based monitoring

Analytical dashboard
Easy visualisation of sensor data on Cloud Portal.
Easy installation and remotely accessible / configurable hardware

Available in various outputs 0-5V, 4-20mA, RS485
Historical data and trends representation
Data Storage in case of no internet availability

our offering

Weather Station

Holmium technologies provide class-A, class-B and class-C Weather monitoring station to monitoring weather conditions.
For Solar Rooftop Plant, Holmium provide set of 3 sensors (pyranometer, ambient temperature sensor, and module back surface temperature) in two different ranges

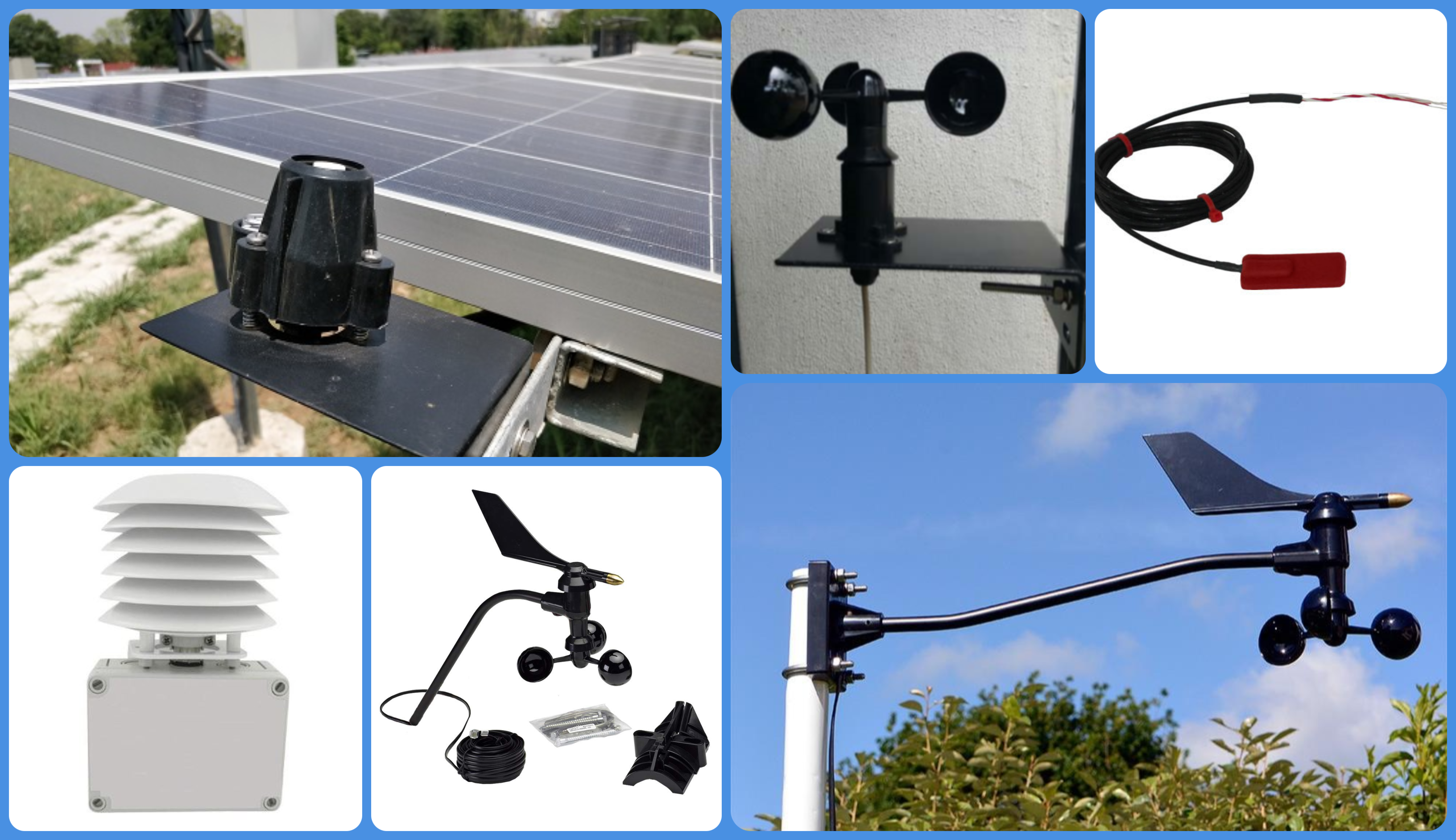

Similarly, for Solar Ground Mounted Plant, 8 set of sensors (POA pyranometer, Horizontal pyranometer, module back surface temperature, ambient temperature, relative humidity, anemometer, wind vane and rain gauge) in all specification along with battery management system.

Frequently Asked

question & answers!

What are the outputs available?

As a standard 0-5V , 4-20ma, Modbus RTU are available and other required outputs such as 0-1V, 0-2V ,Modbus TCP can also be supplied using a converter.

Why is WMS critical for Solar PV Plant Performance?

Solar PV plant performance and life are critically dependent on surrounding weather conditions. Hence, weather monitoring is a crucial asset to help optimize the overall performance and running efficiency of solar PV systems. Following are some key parameters that directly affect the energy output

Solar Irradiation (Irradiance)
Module Temperature/Ambient Temperature
Wind Speed

Can the WMS logger fetch data from Inverter & WMS simultaneously ?

Yes, there are various version of Holmium Data Logger,which can be configured to collect data from any Modbus RTU,Modbus TCP system (Inverter , Meters & Sensors etc).

Can you provide Performance Ratio & Solar Insolation values for Solar Power Plants ?

Yes, if you are Monitoring all Inverters & WMS at a site , we will provide half hourly values of Performance ratio and Daily values of Solar Insolation.

What are the different classes of pyranometers?

Not all pyranometers are of the same quality. Three pyranometer categories have been established by the WMO (World Meteorological Organization) and the International Organization for Standardization (ISO) for different applications. The ISO categories named “secondary standard,” “first-class,” and “second class” closely correspond to the WMO categories named “High quality”, “Good quality”, and “Moderate quality”.
